| Product Code | RV3-4,5-CDM |
|---|---|

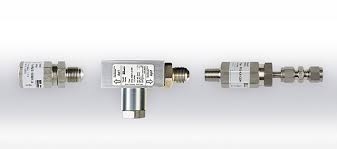

| Description | Differential pressure valve - 60 Bar |
| Unit | Each |
| Notes | ESK Shultze oil reservoir pressure differential valve. The valve is installed between the supplied connection on the ESK oil reservoir and the suction line of the system. The valve maintains a 4.5 bar pressure differential between the oil reservoir and the compressor crank case(s). The valve ensures that the reservoir is at a higher pressure than the compressor crank case(s) allowing lubricant to flow when required. Connection to reservoir - 5/8"-18 UNF Connection to suction - 3/8" SAE Maximum working pressure - 60 bar Set pressure differential - 4.5 bar |
| Image |  |
| Web URL | http://www.esk-schultze.de/ |
