Oil separator - OVS40/1 - 54mm x 42mm ODS




 Product Code  OVS40/1
 Description  Oil separator - OVS40/1 - 54mm x 42mm ODS
 Unit  Each
 Notes Onda OVS oil separator/reservoir for systems of high volumetric flow such as large
parallel rack systems

Maximum Low/Medium temperature theoretical compressor volumetric flow - 300 M3/h

Maximum air-conditioning theoretical compressor volumetric flow - 220 M3/h

Recommended maximum number of compressors - 2

Oil volume - 19 litre

Discharge connections - 54mm ODS in, 42mm ODS out

Oil outlet connection - 1-1/4" UNF (Rotalock)

Heater connections - 3/8" FPT x 2 (Heater part number - M2704010)

Thermostat connection - 3/8" FPT x 1 (Thermostat part number - M2707010)

Oil level switch connection - 1-3/4" UN x 1 (Level switch part number - M2703020)

Oil fill valve connection - 1-1/4" UNF (Rotalock)

Maximum working pressure - 30 bar

*Lubricant, thermostat, oil level switch, oil heater(s) and rotalock valves are sold separately

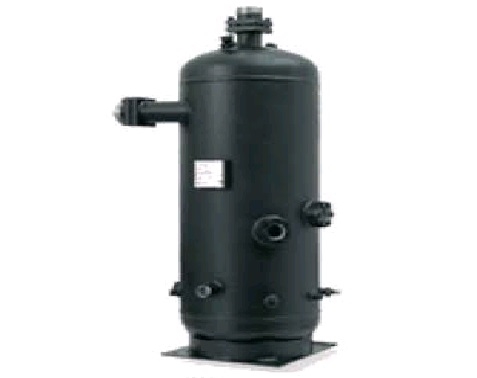

 Image Image
