| Product Code | OS4-07RES |
|---|---|

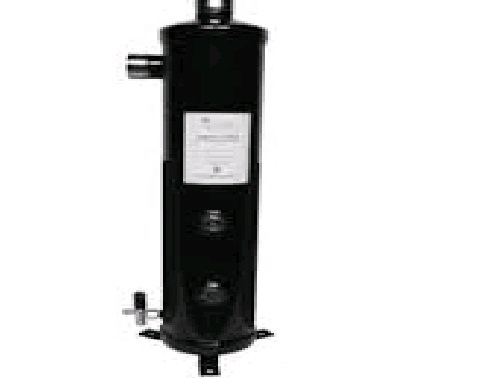

| Description | Oil separator/Res - Centrifugal - 7/8" ODS |
| Unit | Each |
| Notes | This product is designed to remove large quantities of oil at a wide range of operating capacities. Field tests have shown these oil separators to be up to 99% effective even in high oil loading conditions. This separator/reservoir is particularly effective for use with screw compressor systems. The oil separator portion is divided from the reservoir by an internal baffle, which protects the oil in the reservoir from the turbulent action of the oil separator. Two sight glasses provide visual indication of the oil level. It is best to maintain the oil level between the two glasses. Westermeyer industries centrifugal oil separator/reservoir Discharge connections - 7/8" ODS Oil line connection - 3/8' SAE male x 1" Rotalock valve (included) Maximum working pressure - 31 bar Maximum discharge volumetric flow - 12.7 M3/h Minimum discharge volumetric flow - 3.81 M3/h Oil capacity - 7.5 litre |
| Image |  |
| Web URL | http://westermeyerind.com/ |
| Documents |
